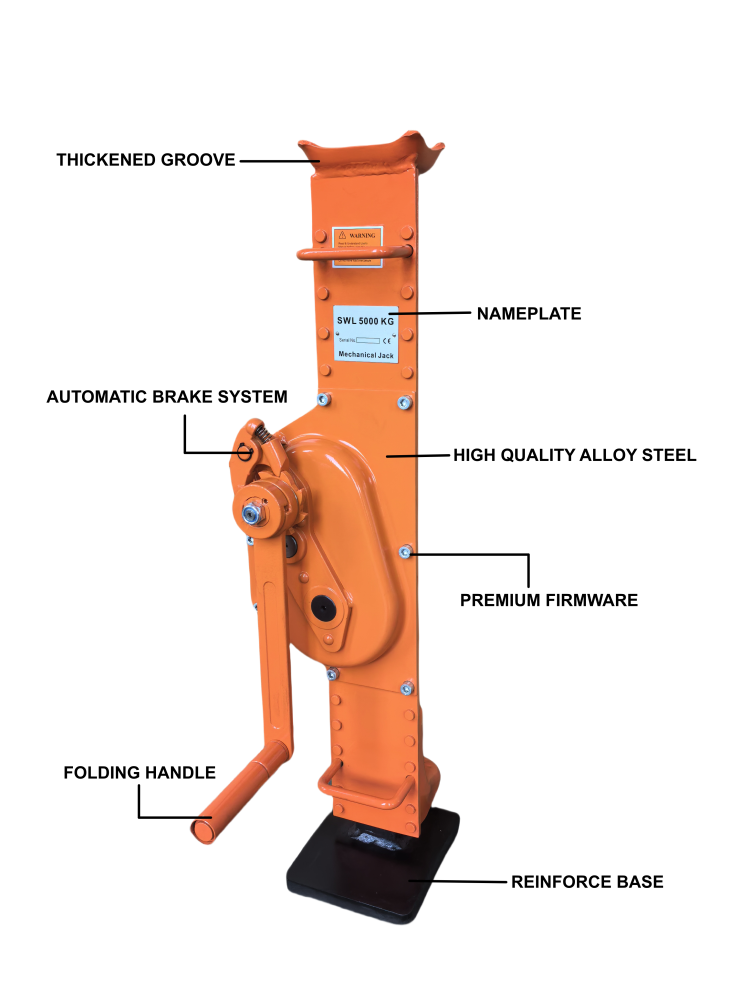

Product introduction
Technical specialities
Double pawl brake system – quick braking, safe and reliable
Low gearing tolerance – smooth transmissions, free of jerks.
High efficiency and minimun turning force Less than 25 kgs is required to lift full load of all rated capacity
Sturdy structure, light weight and quick lift peformance, high quality material CRS plate, carburized alloy steel gears.
Operation Guide
Put the steel jack on even places.
Then place the goods on the Lower Support Stand or the Upper Support Stand .
Shake the Level clockwise to lift the goods, vice verse, the goods are lowered down.

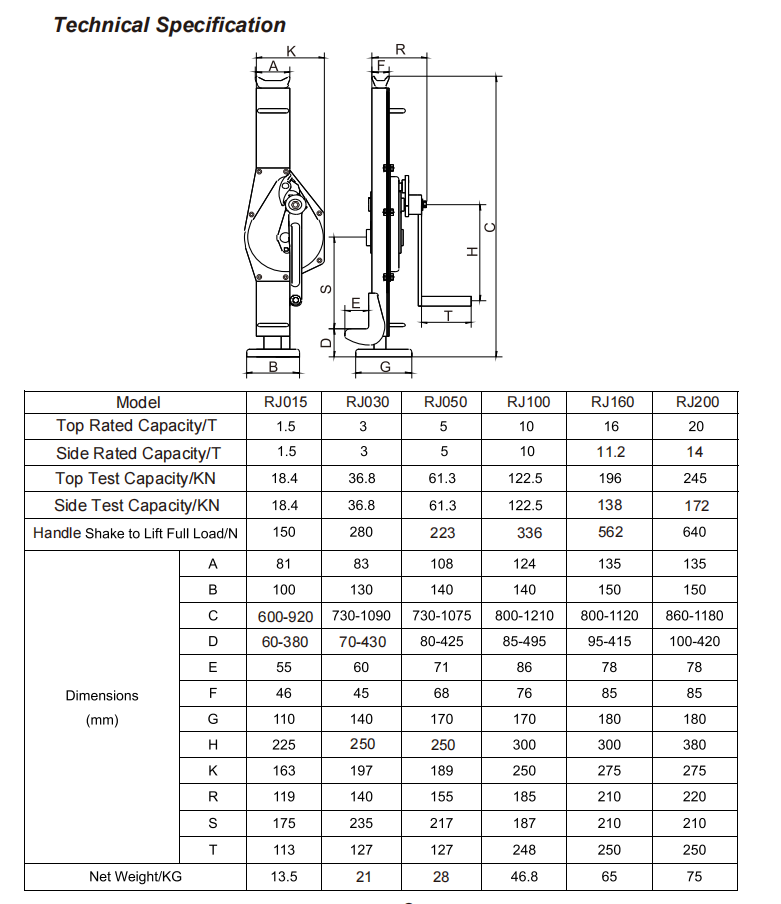

Product specification
Product packaging
Shengzhou Shuli Machinery Co.,Ltd. was established in 2002. After over 20 years of development,our company has won a good reputation among our customers by providing high quality, safe and reliable products as well as fast and efficient service.
